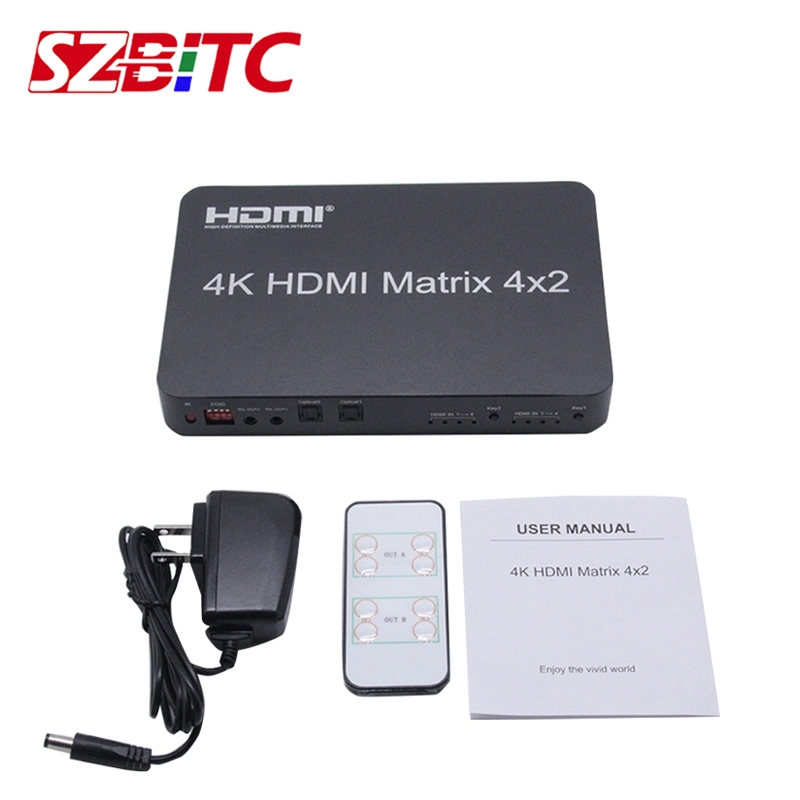

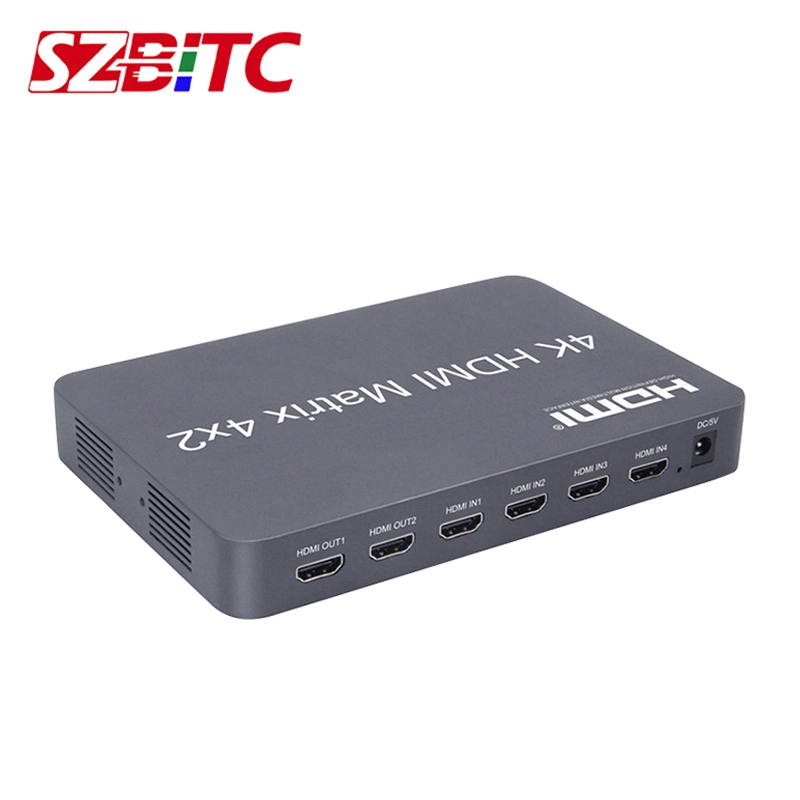

4K HDMI Matrix 4X2 Video HDMI Switcher Splitter with IR Remote Control

Introduction:The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatib

Featured Products

Introduction:

The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo head phone.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:
* Support HDMI 1.4b/HDCP2.2
* Support 3D video format
* Support 3.4Gbps x 3 data rate and tmds clock up to 340Mhz
* Support deep color 8/10/12 bit
* Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time
* 4 HDMI inputs switch and split to 2 HDMI displays.
* Support LPCM/Dolby/DTS 5.1 channel

Specification:
HDMI version...............…..........................................….....…....….…...HDMI 1.4b
HDMI resolution .............…....….…....….…....….…...............................up to 3840*2160/30Hz
Support video format ......…............................…......…...........................8/10/12 bit deep color
Support audio format...........................................................….................LPCM/DTS/Dolby-AC3
Max bandwidth...........................…..…......…..........................….…....…340MHz
Max baud rate.......................…..............….............................….….…...3.4Gbps x 3
Input cable distance..…... ............….....…......................................≤10m AWG26 HDMI 1.4 standard cable
Output cable distance......….......................................................….≤15m AWG26 HDMI 1.4 standard cable
HDMI Input..........................................................….......….........….…...4
HDMI Output..........................................................................….….......2
Max working current..................….....................................…........…......….600mA
Power adapter format....................................................................Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range...........….…..........................................…..…(-15 to +45ºC)
Operating Humidity range.......................…................................…....5 to 90%RH (No Condensation)
Dimension (L x W x H)...............................................................…..188x128x25 (mm)
Weight….............................…..................................….…..........….…....332g
4K HDMI Matrix 4X2 Video HDMI Switcher Splitter with IR Remote Control
4K HDMI Matrix 4X2 Video HDMI Switcher Splitter with IR Remote Control
