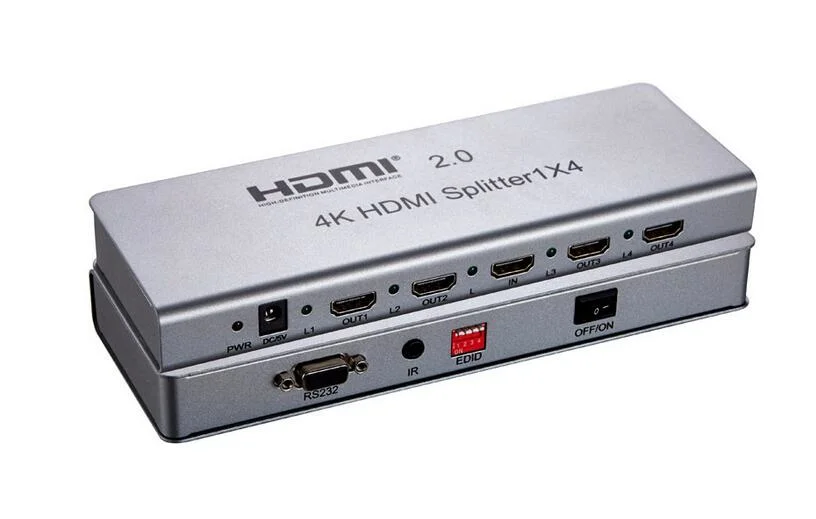

1X4 HDMI Splitter (HDMI 2.0, HDCP2.2, 4K, IR Extension, EDID Management, RS232)

INTRODUCTION This 1x4 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can b

Featured Products

INTRODUCTION



This 1x4 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 4 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/60Hz.

This product can support EDID management function, comes with eight kinds of EDID mode, the users can choose according to their own needs. In addition, this product is with built-in IR extension function, it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to control the source



 FEATURES:

1. Support HDMI 2.0 ,HDCP2.2

2. Support 3D video format

3. Support high resolution up to 3840X2160/60HZ

4. Support the max baud rate of 6G and TMDS clock can be up to 600 MHz

5. Support  8/10/12 bit deep color

6.Support AWG26 HDMI standard cable:

    when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.

    when the resolution is 4K, input up to 8 meters, output up to 8 meters.

7.Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.

 Built-in IR extension function.(it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command to remote control the source)

8. Support serial port online upgrade

9.Support EDID management

10. 5V/2A power adapter

Specifications:

HDMI version  .............................................. HDMI 2.0

HDCP version  .....................…....................... HDCP 2.2

HDMI resolution .................... ...….. ...….. ......up to 3840*2160/60Hz

Support video format ...................................8/10/12bit Deep color

Support audio format..............…. ....DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth.............................................….600MHz

Max baud rate.......................…...........................6Gbps

Input cable distance................….(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable

Output cable distance...............(1080p resolution) ≤8m,(4K resolution)≤8m AWG26 HDMI standard cable

Max working current..........................................…....1.4 A

Power adapter format.........….….input AC (50Hz, 60Hz) 100V-240V; output: DC5V/2A

Operating Temperature range...............…........…..........(-15 to +55ºC)

Dimension (L x W x H)............................................…. 220x75x24 (mm)

Weight....…................................…..................530g
