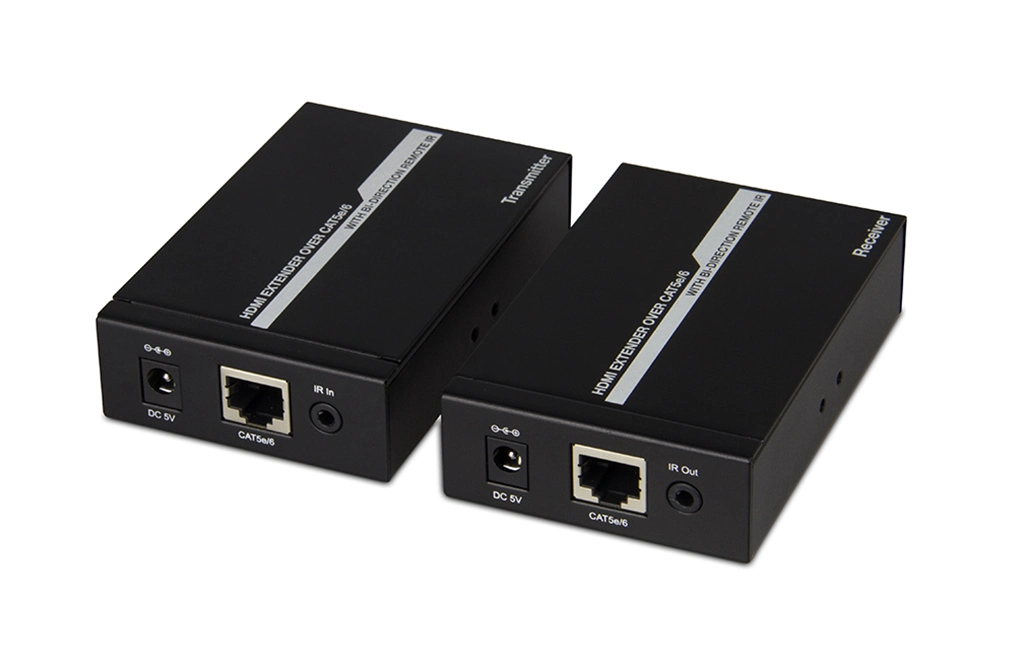

HDMI Single Cat5e/6 Bi-Direction IR Extender includes transmitter and receiver. Transmitters combine HDMI video, audio and control signals, then transmit them through single CAT5e cable. Receivers get these signals, separate signals and rebuild video, audio and control ones, output through HDMI interfaces. It also supports bi- direction remote IR (RX->TX and TX->RX), EDID call back, and both input and output HDCP 1.2 compatible. This product can achieve all functions through single CAT5e cable. Extending distance is 50 meters for 1080p 60Hz HD signal.
Main features:
Extending distance is 170ft(50 meters) at resolutions 1080P 3D or 1920x1200 60fs, and 270ft(80 meters) at 1080i/720P
Through single CAT5e cable.
Support audio formats, Dolby True HD, DTS-master, etc.
Support 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc.
Supports EDID call back.
Supports CEC pass through.
VESA DDC and hot swap technology (HPD).
Bi-direction remote IR (RX->TX and TX->RX).
HDCP 1.2 compatible.
Compatible DVI 1.0.
Support cascade to enhance extending distance.
Industrial metal case, easy to install.
HDMI Single Cat5e/6 Bi-Direction IR Extender includes transmitter and receiver. Transmitters combine HDMI video, audio and control signals, then transmit them through single CAT5e cable. Receivers get these signals, separate signals and rebuild video, audio and control ones, output through HDMI interfaces. It also supports bi- direction remote IR (RX->TX and TX->RX), EDID call back, and both input and output HDCP 1.2 compatible. This product can achieve all functions through single CAT5e cable. Extending distance is 50 meters for 1080p 60Hz HD signal.
Main features:
Extending distance is 170ft(50 meters) at resolutions 1080P 3D or 1920x1200 60fs, and 270ft(80 meters) at 1080i/720P
Through single CAT5e cable.
Support audio formats, Dolby True HD, DTS-master, etc.
Support 3D signals (all 7 formats), such as Frame Packing, Side-by-Side, Top-to-Bottom, etc.
Supports EDID call back.
Supports CEC pass through.
VESA DDC and hot swap technology (HPD).
Bi-direction remote IR (RX->TX and TX->RX).
HDCP 1.2 compatible.
Compatible DVI 1.0.
Support cascade to enhance extending distance.
Industrial metal case, easy to install.
| Interface | Transmitters | HDMI input, IR output (3.5mm), IR input (3.5mm),RJ45 Ethernet interface, 5V DC in |
| Receivers | HDMI output, IR output (3.5mm), IR input (3.5mm),RJ45 Ethernet interface, 5V DC in | |
| Power | <3.5W TX or <2.5W RX | |
| Dimension | (L x W x H): 100 x 65 x 26mm | |
| Net weight | 0.2kg per unit | |
| Video bandwidth | Maximum TMDS clock frequency 165MHz,4.95Gbps | |
| Resolution and distance | 1080P 170ft (50 meters)-CAT5e/ 270ft (80 meters)-CAT6 720P/1080i 270ft (80 meters)-CAT5e/ 330ft (100 meters)-CAT6 | |
| Audio formats | 8-channel, support Dolby True HD and DTS Master | |
| TMDS input signal | 1.2 volts (point to point) | |
| DDC input signal | 5 volts (point to point) | |
| Indicator | Power-Red, video link-Blue | |
| HDMI interface standard | HDMI 1.3 standard (HDMI 1.4 3D function), HDCP 1.2, support CEC, EDID | |
| Remote IR | 38KHz | |
| ESD level | HBM ±8 kV (Contact Discharge) | |
| Temperature range | 0 ~ 40°C (operation), -20~60°C(stock) | |
| Compliance | FCC; CE; RoHS | |
