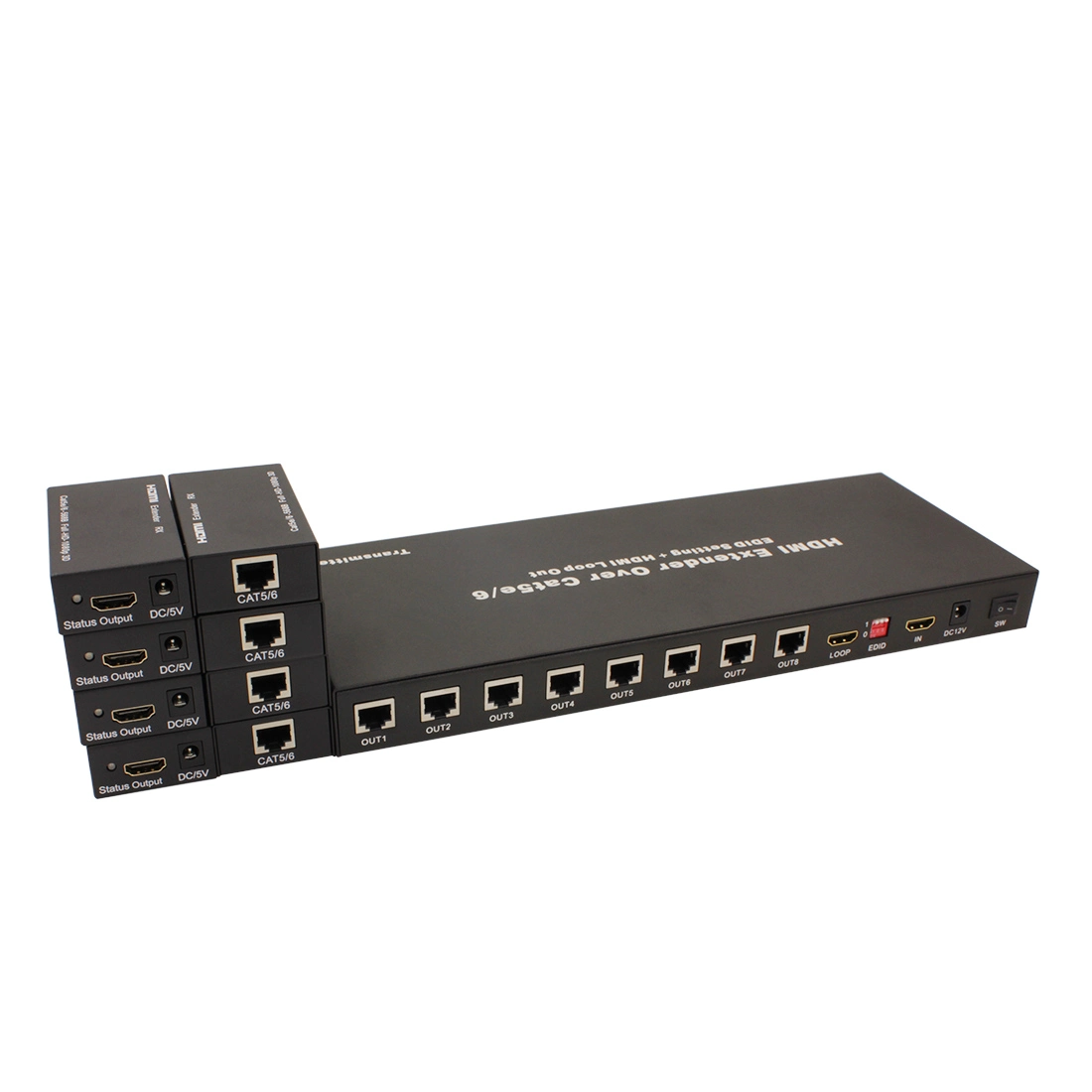

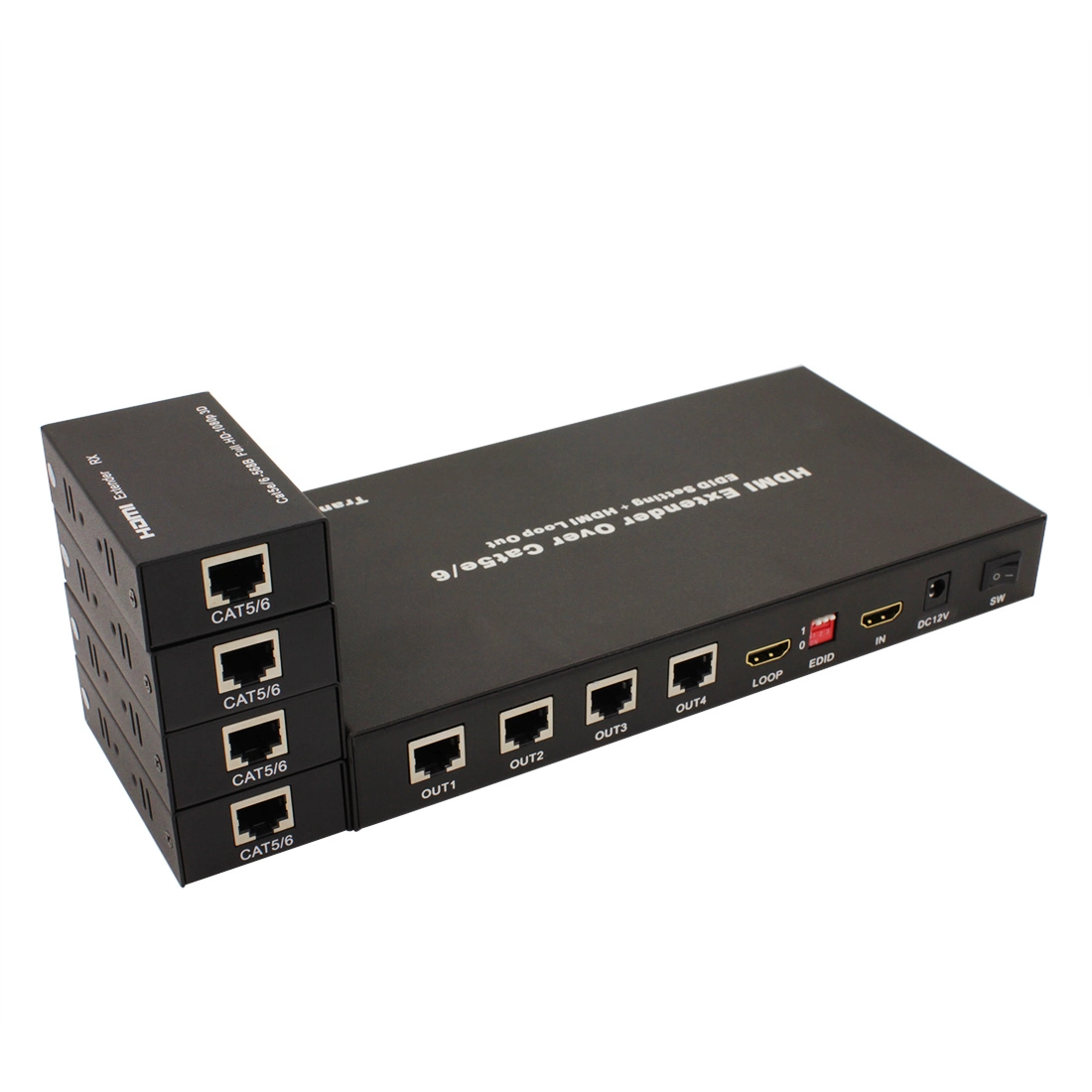

HDMI Splitter 1x2/4/8 Over CAT6 With LOOP And EDID




INTRODUCTION

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Our series of HDMI converters, switchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


FEATURES
  1. One HDMI input signal split to five HDMI sink devices(One is the LOOP output, the other
outputs is the RJ45 output)
  1. Support 3D 1080P
  2. Support deep color 30bit, 36bit
  3. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
  4. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  5. Support signal retiming
  6. Support output up to 50metres by CAT6 cable
  7. No loss of quality
  8. Installs in minutes


The accessories with the machines lists as picture:

1,1 x Power Adaptor
2,1 x User manual
3,1 x Extender Splitter



SPECIFICATIONS:
HDMI resolution ..................... ...... ..3D /1080p/1080i/720p/576p/576i/480p/480i
Support video color format ...............…........….24bit/deep color 30bit,36bit
Support audio format.........….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth..........................................…..2250MHz
Max baud rate.......................…...................….. ….6.25Gbps
Input/Output TMDS signal ...........................…...… 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ................................... 5Volts p-p (TTL)
Input cable distance..…... ......….............….≤10m AWG26 HDMI standard cable
Output cable distance.........................…..........…...≤50m CAT6 cable
Max working current....................................5V/800MA(2PORT)
       12V/750MA(4PORT)
12V/1500MA(8PORT)
Power adapter format..Input: ......…... ..... ...…........AC (50HZ, 60HZ) :100V-240V
Operating Temperature range...........…...................... (-15 to +55ºC)
Operating Humidity range...............….…....….5 to 90%RH (No Condensation)






Notes:
Pls use the machine as the instruction listed to keep the long use lifetime of the machine.
  1. The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
  2. All parts will be free from the strong shake, hit, fall.
  3. Touching the power adaptor with the wet hands is prohibited.
  4. Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.
  5. Pls turn the power off when the machine is not used for long time.
  6. Pls do not open the cover and do not touch the inside parts.
  7. Pls use the original factory power adaptor.


Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:

Serial NOTrouble DescriptionCause and Ways to deal with
1 Non-Power-Connected1,Check if the power adaptor head is truly and correctly inserted the power socket.
2,Check the power switch if it is in on status.
2No Picture1,Pls to make sure that the TV is on and has been connected with the machine.
2,To check if the signal source is on and well connected.
3,Check the system connection quality.
4,Check if the line is all good quality.
5,Check the cable quality
3Obscure Picture1,To try again to connect the cable to be free from the unsuccessful connection.
2,HDMI Cable Quality
