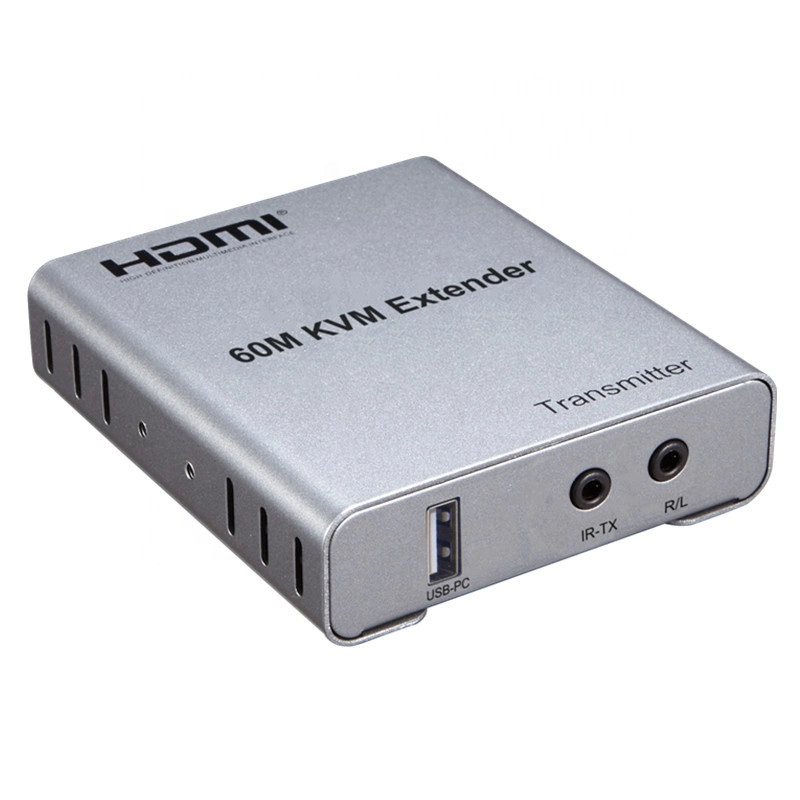

60m HDMI USB KVM Extender with IR
The Extender uses single cat5e or cat6(recommended)cables instead of HDMl cable to transmit high definition signal up to 60 meters,cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Features:
1: Support highest video resolution 1080p/60Hz;
Features:
1: Support highest video resolution 1080p/60Hz;
2: 60M long distance transmission:
3: Both the TX and RX support 3.5MM left and right audio output;
4: Low power consumption, low temperature and high safety;
5: Support IR remote control;
6: Support USB mouse and keyboard extension.
Specifications:
The Package includes:
3: Both the TX and RX support 3.5MM left and right audio output;
4: Low power consumption, low temperature and high safety;
5: Support IR remote control;
6: Support USB mouse and keyboard extension.
Specifications:
Length of CAT-6 cable between Rx and TX | Up to 60 metres |
HDMI Resolutions | 1080p/1080i/720p/576p/576i/480p/480i |
Max bandwidth | 150MHz |
Max baud rate | 4.5Gbps |
Input Video signal | 0.5~1.5Volts p-p |
Output DDC signal | 5Volts p-p (TTL) |
HDMI cable distance | Input<=10m AWG26 HDMI standard cable output<=15m AWG26 HDMI standard cable |
Power adapter format | Input:AC (50HZ~60HZ) 100V-240V; Output: DC5V/1A |
TX max working current RX max working current | 300mA 300mA |
Operating Temperature range | (-15 to +45 Centigrade) |
Operating Humidity range | 5 to 90%RH (No Condensation) |
Dimension (L x W x H) | 94x84x24mm |
Weight | 220g*2PCS |
The Package includes:

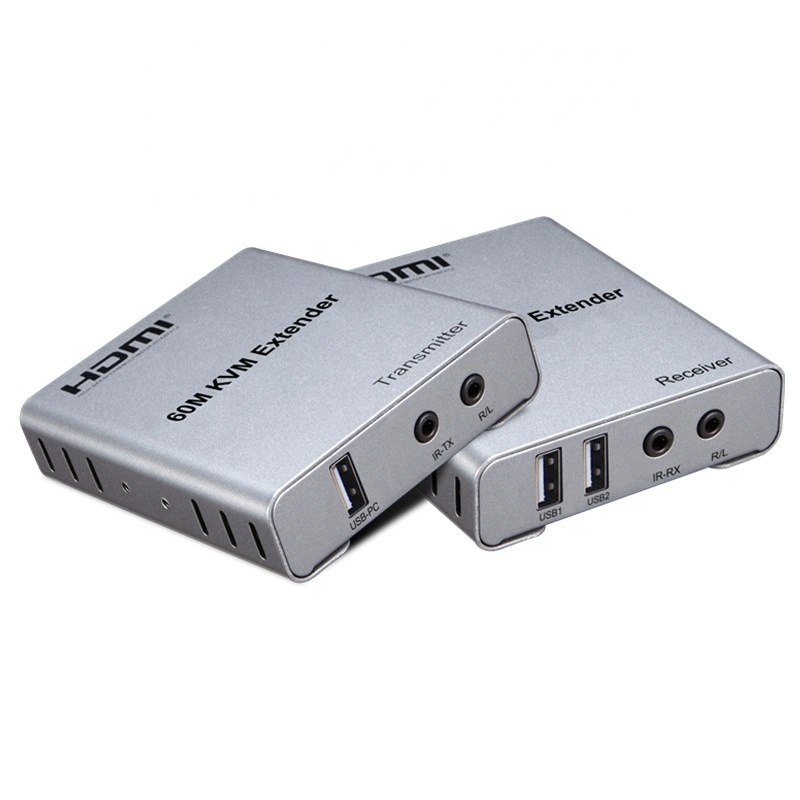

1. TX Extender 1PCS
2. RX Extender 1PCS
3. IR receiver cable 1PCS
4. IR transmitter cable 1PCS
5. 5V power adapter 2PCS
6. User manual 1PCS
2. RX Extender 1PCS
3. IR receiver cable 1PCS
4. IR transmitter cable 1PCS
5. 5V power adapter 2PCS
6. User manual 1PCS
