P1.875mm Ultra HD Indoor LED Display SMD LED Video Wall Advertising LED Broadcast
1.High gray scale and refresh rateWith 14bit of gray scale and 2000Hz refresh rate , to get more real and natural images
1.High gray scale and refresh rate
2.Slim , durable and light-weight
Aluminum alloy cabinet at 7kg each . which easy to transport and install3.Seamless connection , whole / big screen display
Perfect seamless connection to ensure silky effect on display| OPTICAL | Pixel Pitch | mm | 1.875mm |
| LED No. Per Pixel | pcs/pixel | 1 | |
| Brightness(Adjustment) | cd/m² | 600~800 | |
| LED Encapsulation | - | SMD1010 | |
| Module Resolution(W*H) | pixels | 128*128 | |
| Cabinet Resolution(W*H) | dots | 256*256 | |
| Pixel Density | dots/sqm | 284,444 | |
| Viewing Angle(H/V) | degree | H160/V160 | |
| Color Depth/Number | bit | 16bit | |
| Grey Scale | - | 16bit | |
| ELECTRICAL | Frame Frequency | Hz/s | 50/60 |
| Refresh Rate | Hz | 3840 | |
| Contrast Ratio | - | 5000:1 | |
| Max Power Consumption | W/m² | 750 | |
| Ave Power Consumption | W/m² | 217 | |
| Working Voltage | AC | AC110V~ 220V | |
| Drive Voltage | DC | 15V | |
| Working Temperature | ºC | 0°C~40°C | |
| Humidity | - | 10%~90% | |
| Driving Method | - | ||
| MECHANICAL | Frame Material | - | Die-casting aluminum |
| Module Size | mm | 240*240*16 | |
| Net Weight | kg/pcs | 7 | |
| Weight Per Tile | lbs | 15.45 | |

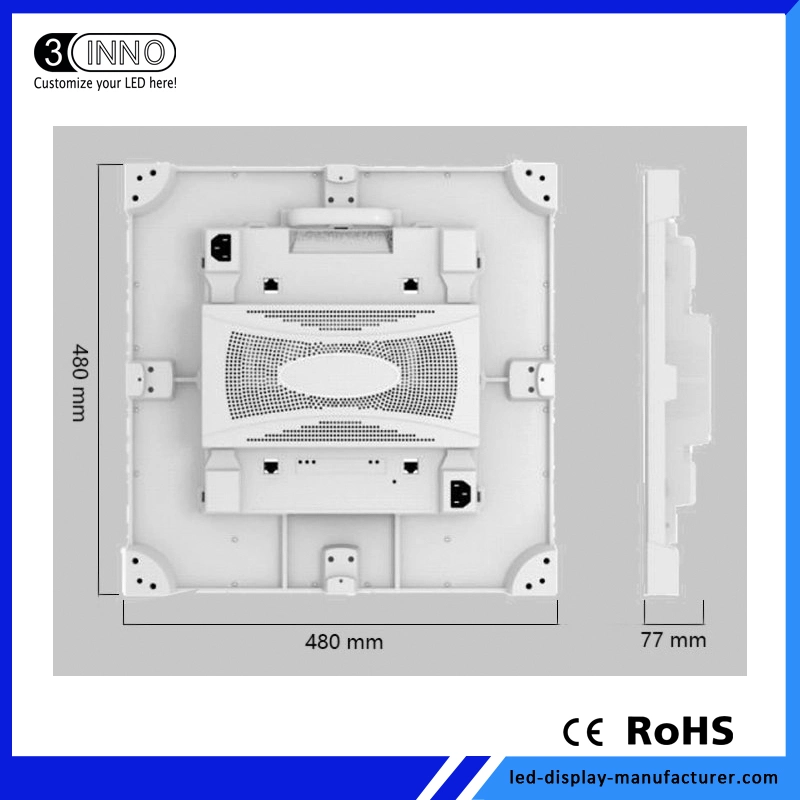

| Cabinet Size | mm | 480*480*77mm | |
| IP Rating | - | IP30 | |
| Lifetime | hours | 100,000 | |
| Application | - | Indoor |
